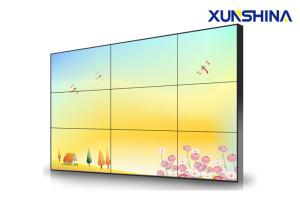

20mm Narrow Bezel Video Wall 42 inch with LG IPS Panel for Sports
Self-developed automatic color calibration algorithm, through embedded simulated standard color bar to each unit to color calibration, just use the mouse to click, the color will be calibrated automatically, ensuring the color consistency of each unit, making the colors more true.
Features
1) Industrial design, durable, stable and reliable
2) Support 7*24*365 hours working
3) Ultra narrow frame, bezel is only 20mm
4) Native resolution1920x1080
5) Brightness 450nits
6) LED backlight video wall
7) Wide viewing angle H178°/V178°
Specifications
| Model No. | XS460-4200HD-LW2 |
|
LCD | Size | 42" LG panel
LG |
| Resolution | 1920(H)x1080(V) |
| Pixel pitch | 0.4845(H)x0.4845(V) |
| Backlight | LED |
| Brightness(typical) | 450cd/m² |
| Contrast | 1300 : 1 |
| Viewing angel (H/V) | 178° / 178° |
| Color depth | 16.7M |
| Response time | <12ms |
| Display area | 930.24(H)×523.26(V) |
| Bezel | 20mm |
|
Interface | CVBS In / Out (BNC ) | 1/1 |
| VGA In / Out | 1/0 |
| DVI In / Out | 1/0 |
| HDMI In/Out | 1/0 |
| DEBUG(USB) | 1/0 |
| Control | IR remote control | Yes |
| RS-232 In/Out | 1/2 |
| Physical parameter | Dimension | 958.4mm(W)x551.3mm(H)x91.2mm(D) |
| Frame color | Black |
| Frame material | Metal |
| Weight | 12Kg |
| Power | Power consumption | ≦180W |
| Standby | <1W |
| Power supply | AC 100V-240V, 50/60Hz,Universal,±10% |
| Environment | Operating humidity | 20-90% RH(no condensation) |
| Storage humidity | 10-90% RH (no condensation) |
| Operating temperature | 0 ~ 50° C / 32 ~ 122° F |
| Storage temperature | -20 ~ 60° C / -4 ~ 140° F |
| Accessory | Standard accessories | Power cable, User manual, Warranty card, Quality certificate |
| Optional accessories | Wall mounted brackets, floor stand brackets, cabinet |
| *design and specifications are subject to changes without prior notice |
Display Mode
Applications
Our Services
Pre-sales service :
Our team design and make solutions based on different requirements from different customers.
After-sales service:
1. We provide customer service through Skype, phone or email.
2. We provide remote control service through internet to achieve real time service.
Installation Service:
1. We provide detailed CAD drawing to customers for preparing metal structure.
2. Onsite service can be provided for guide installation and training.
